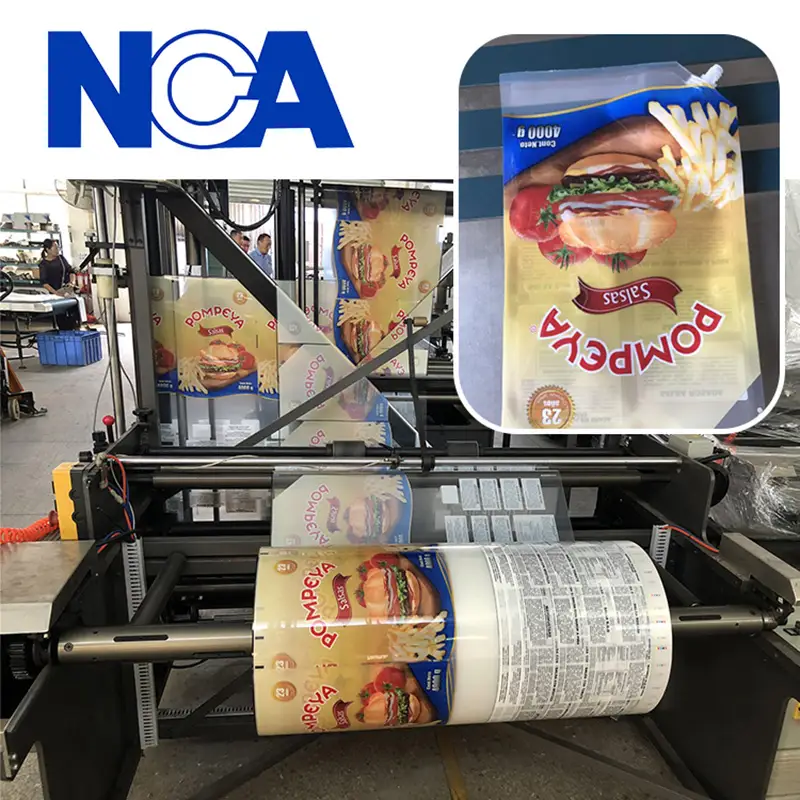

Automatic Bag Making And Spout-welding Machine NCA600SJA 1

Automatic Bag Making And Spout-welding Machine NCA600SJA 2

Automatic Bag Making And Spout-welding Machine NCA600SJA 3

Automatic Bag Making And Spout-welding Machine NCA600SJA 4

Automatic Bag Making And Spout-welding Machine NCA600SJA 5

Automatic Bag Making And Spout-welding Machine NCA600SJA

Name: Automatic Bag Making And Spout-welding Machine NCA600SJA
Uploaded: 2025-11-28T15:59:38+08:00
Description: The machine is used to make bags, cut an angle and weld plastic spouts on the cut automatically. The bag-making and spout-welding can be done at the same time.

Usage
1.The machine is used to make bags, cut an angle and weld plastic spouts on the cut automatically. The bag-making and spout-welding can be done at the same time.
2. It is suitable for the large pouches of drinks, sauce, washing liquid, hand washing liquid and sugar powder etc.

Inquiry

Write a Review

Advantage

Automatic Bag Making And Spout-welding Machine NCA600SJA 6 Capacity: 25-30pcs/min

Automatic Bag Making And Spout-welding Machine NCA600SJA 7 Bag making, welding nozzle integrated machine.

Automatic Bag Making And Spout-welding Machine NCA600SJA 8 It is suitable for the large pouches of 3~5L.

Working principle and process

Automatic Bag Making And Spout-welding Machine NCA600SJA 10 This machine is for producing three side seal bag with spout.

Automatic Bag Making And Spout-welding Machine NCA600SJA 11 This machine is for making three-side sealing bag and welding spout (one lance) and three side seal bag(two lances).

Automatic Bag Making And Spout-welding Machine NCA600SJA 12 Install the film reel with air shaft; put it on the film reel frame. Pull the film by hand, put it under the last servo pulling roller, adjusting, press the RUN button, machine begin to work. The machine starts from unwinding, in turns are tension control, rectifying, cutting from film center, double layers coinciding, dancer arm roller tension adjusting, vertical sealing, servo drive, cross sealing, handle punching, angle cutting, spout feed and spot weld, spout hot welding, spout cold sealing, pouch edge cutting, color code tracking, servo traction, cutting off etc. Whole processes are automatically.

Main Technical Specification

Film material	BOPP、CPP、PET、PE、NYLON etc. Various laminated films.
Capacity	25-35parts/min
Material thickness	Max 440×320mm
Spout type	one kind short spout.Max inside diameter 22mm.
(Speed for spout pouch, specific speed according to pouch size and material)
Pouch size:(L×W)	Max 450×320mm
Total power	About 50KW
Power voltage	AC380V,50HZ, 3P
Air pressure	0.5-0.7Mpa
Cooling water	10L/min
Machine working table height	950mm
	handle operation height 850mm
Machine dimension(MAX)	L×W×H: 14000×2600×1960mm
Machine weight	about 7000KG
Machine color	Gray (wallboard)/ stainless steel (guard board)
