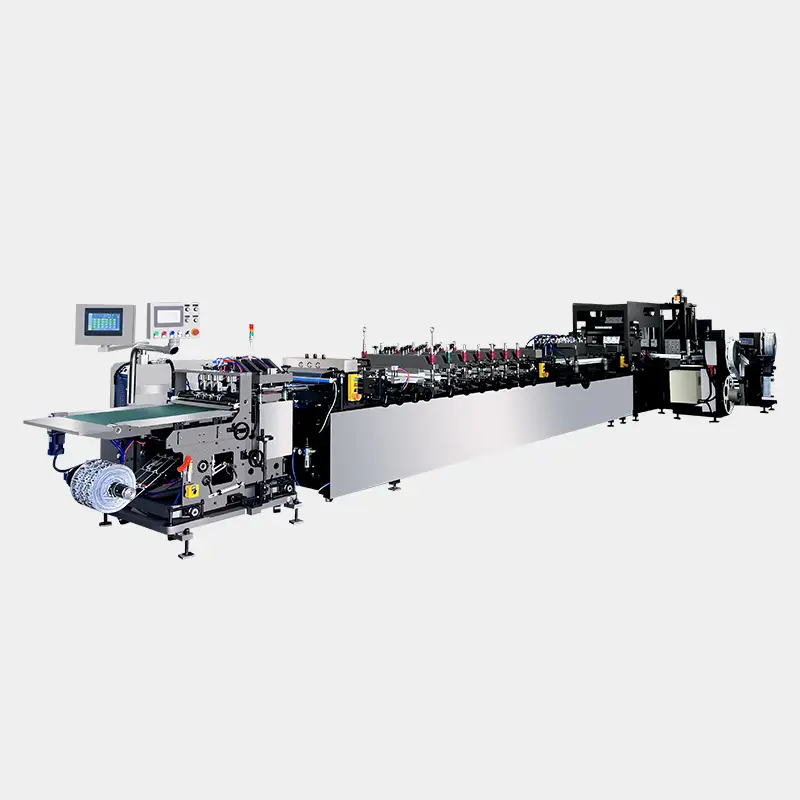

Cheerpack Pouch Making Machine NCA600SZQ
1.This machine is used to make packaging bags of various laminated films.
2.Through the optional auxiliary device, it can be widely suitable for making three-side seal bag, stand-up pouch, and Penguin bag.
Advantage
Working process of this machine
The machine starts from unwinding, in turn are magnetic powder brake, dancer arm roller tension adjusting, cutting, rectifying, double layers coinciding, zipper sealing(hot/cold), servo drag, vertical sealing(hot/cold), servo drag, cross hot sealing, cross hot sealing, cross cold sealing, bag spare side cutting, color code track, servo traction, cutting off,
products unloading table.
Main Technical Specification
|
Model |
NCA600SZQ |
|
Roll size |
Max width 1220mm Max diameterφ800mm |
|
Auxiliary material |
Cheerpack pouch:Max width 150mm; Max diameterφ500mm |
|
Pouch making |
Cheerpack pouch: (Width ): Max 600mm Length ): 30-320mm， |
|
|
Stand-up pouch:(Width): 80-320mm, (Width ): 80-600mm |
|
|
(If over 320mm, need to use multiple conveying) |
|
Bag-making speed & |
(3-side seal bag): 150parts/min (Double bags feed): 300bags/min |
|
Power |
AC 380V, 50HZ, 3P, 69KW |
|
Compressed air |
0.5-0.7Mpa |
|
Cooling water |
10L/min |
|
(L×W×H) |
10500×2500×2000(mm) |
|
Weight |
6000KG |
