Three-side Seal Bag Making And Handle Welding Machine NCA600SHW

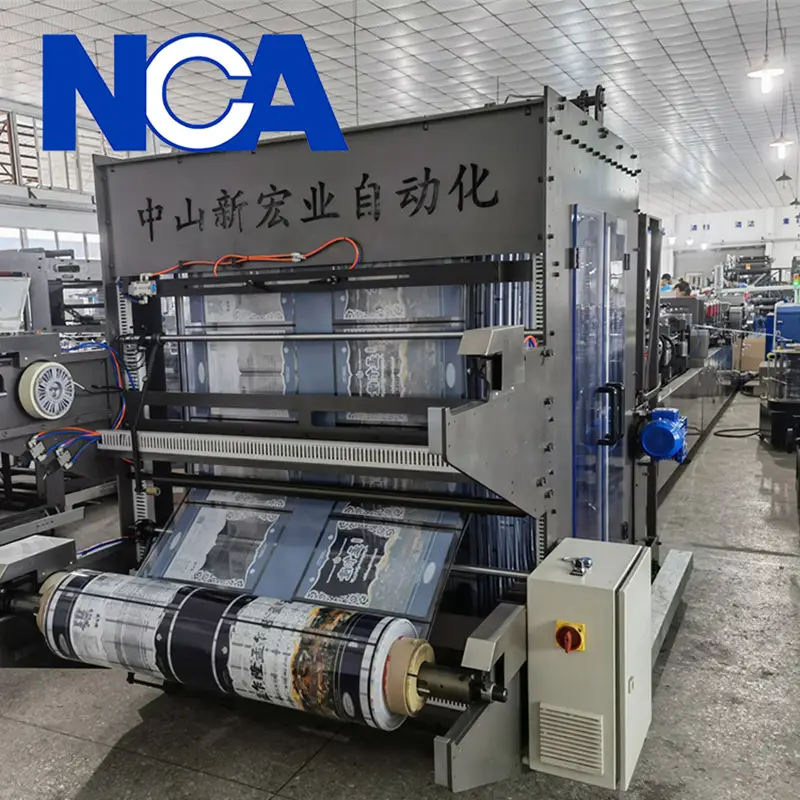

Name: Three-side Seal Bag Making And Handle Welding Machine NCA600SHW
Uploaded: 2025-11-28T15:52:16+08:00
Description: This machine is used to make packaging bags of various laminated films.

Usage
1.This machine is used to make packaging bags of various laminated films.
2.Through the optional auxiliary device, it can be widely suitable for making three-side sealing bag and three-side bag with welded handle.

Inquiry

Write a Review

Advantage

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 7 Applicable bag type: 5 kg / 10 kg

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 8 Speed: 25-30pcs / min

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 9 Automatic hole punching, handle welding and bag making in-line , save labor costs.

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 10 The sealing quality is smooth and beautiful.

List of Key Components

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 12 PLC control module: Panasonic Japan

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 13 Servo motor: Panasonic Japan

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 14 Film unwinding constant tension, AUTO rectifying

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 15 Speed reducer: Planetary China

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 16 Color mark sensor: Italy

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 17 Cylinder: AirTAC China

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 18 10.4’ touch screen: WEINVIEW, Taiwan

Three-side Seal Bag Making And Handle Welding Machine NCA600SHW 19 Machine control system: Hangzhou Sotry, China

Main Technical Specification

Film material	BOPP、CPP、PET、PE、NYLON etc. Various laminated films.
Capacity	Three-side seal with handle bag: 20-25parts/min
Max film reel unwinding speed	36m/min (Machine designing speed)
Bag making error	length and width : ±1mm.
(Actual capacity is according to the bag length, film material and hot sealing efficiency.)
Film reel size	Main film:Max φ800×1220mm(width), inner hole：3′
	Gusset film: Max φ600×150mm, inner, hole：3′ air shaft
Pouch size	Bag length: Max580mm Bag width: Max420mm, (over 420 mm need the multiple conveying).
Total power	About 52KW
Power voltage	AC Three phase 380V，50HZ
Air pressure	0.5-0.7Mpa
Cooling water	10L/min
Machine working table height	950mm
	handle operation height 850mm
Machine dimension(MAX)	L×W×H: 11000mm×3000mm×2000mm
Machine weight	about 6000KG
Machine color	Gray (wallboard)/ stainless steel (guard board)

Product display

A1 (1) 拷贝 (2)

A1 (15) 拷贝

A1 (34) 拷贝

A1 (49) 拷贝

机器图拷贝

样品图拷贝 (6)
