NCA - Established in 1999, we are a professional supplier of automatic flexible bag production machines and nozzle sealing machines.

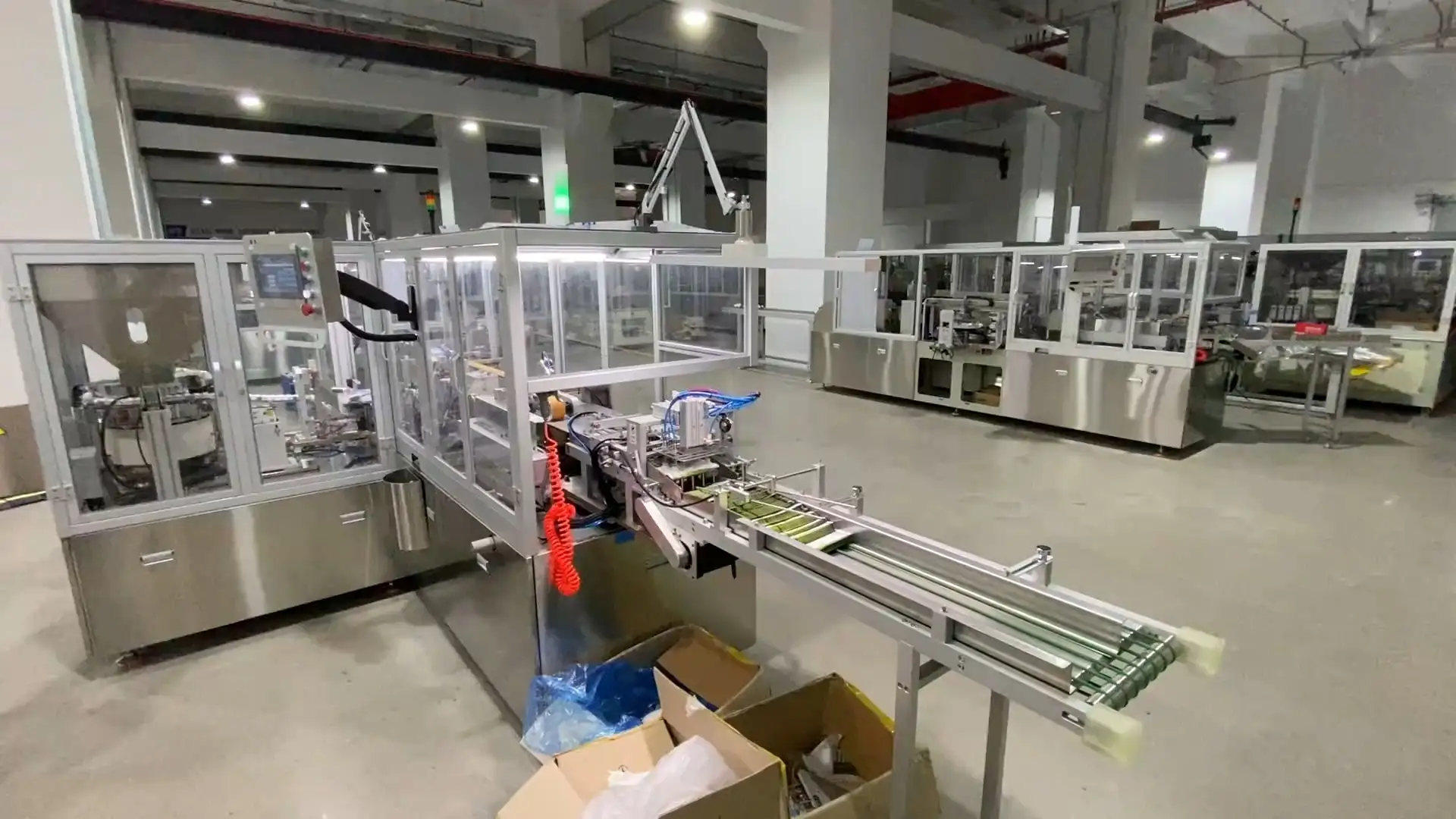

Automatic Pouch Spout Inserting Operating Machine NCA1623B 1

Automatic Pouch Spout Inserting Operating Machine NCA1623B 2

Automatic Pouch Spout Inserting Operating Machine NCA1623B 3

Automatic Pouch Spout Inserting Operating Machine NCA1623B 4

Automatic Pouch Spout Inserting Operating Machine NCA1623B 5

Automatic Pouch Spout Inserting Operating Machine NCA1623B

Name: Automatic Pouch Spout Inserting Operating Machine NCA1623B
Uploaded: 2025-11-28T13:42:46+08:00
Description: The machine is used to cut an angle and weld a plastic spout on the cut automatically.

Usage
1.The machine is used to cut an angle and weld a plastic spout on the cut automatically.
2.It is suitable for the large pouches of drinks, chrysanthemum MSG, grape sugar powder, washing liquid, hand washing liquid and cosmetics etc.

Inquiry

Write a Review

Advantage

Automatic Pouch Spout Inserting Operating Machine NCA1623B 6 Capacity: 40-45pcs/min.

Automatic Pouch Spout Inserting Operating Machine NCA1623B 7 Spout type: Short spout, supplied by the customer. (φ5mm-φ25mm).

Automatic Pouch Spout Inserting Operating Machine NCA1623B 8 Mechanical sealing (4-5 servo) , and lower maintenance costs.

Automatic Pouch Spout Inserting Operating Machine NCA1623B 9 Automatic Angle cutting function, center/corner spout pouch.

Automatic Pouch Spout Inserting Operating Machine NCA1623B 10 With pouch feeding conveyor and finished pouch unloading conveyor.

List of Key Components

Automatic Pouch Spout Inserting Operating Machine NCA1623B 12 Control: PLC (Japan Mitsubishi)

Automatic Pouch Spout Inserting Operating Machine NCA1623B 13 Main drive: Servo (Japan Panasonic)

Automatic Pouch Spout Inserting Operating Machine NCA1623B 14 Vacuum system: Vacuum pump(Germany)

Automatic Pouch Spout Inserting Operating Machine NCA1623B 15 Sealing system: Mechanical(Japan Panasonic)

Automatic Pouch Spout Inserting Operating Machine NCA1623B 16 Pouch pick & feed: Cylinder(Japan SMC)

Automatic Pouch Spout Inserting Operating Machine NCA1623B 17 Spout insert: Servo(Japan Panasonic)

Main Technical Specification

Pouch size (L×W)	Corner spout: (120-320)×(100-250)mm MAX: 300×250mm 320×200mm 260×260mm
Cutting angle	17º---45º±2º
Spout type	Short spout, supplied by the customer.(φ5mm-φ25mm)
Production efficiency	40-45 pieces/min(the smaller size pouch) 35-40 pieces/min(the bigger size pouch) Note: The production efficiency varies because of the material and the difference of the pouch size.
Power	AC380V，50HZ，11KW，3P
Compressed air	0.7Mpa, 250NL/min
Dimension (L×W×H)	5700×3000×1900mm
Cooling water	6L/min
Weight	2000Kg

Application scenarios

IMG_6845

IMG_9861

NCA1623B⑤
