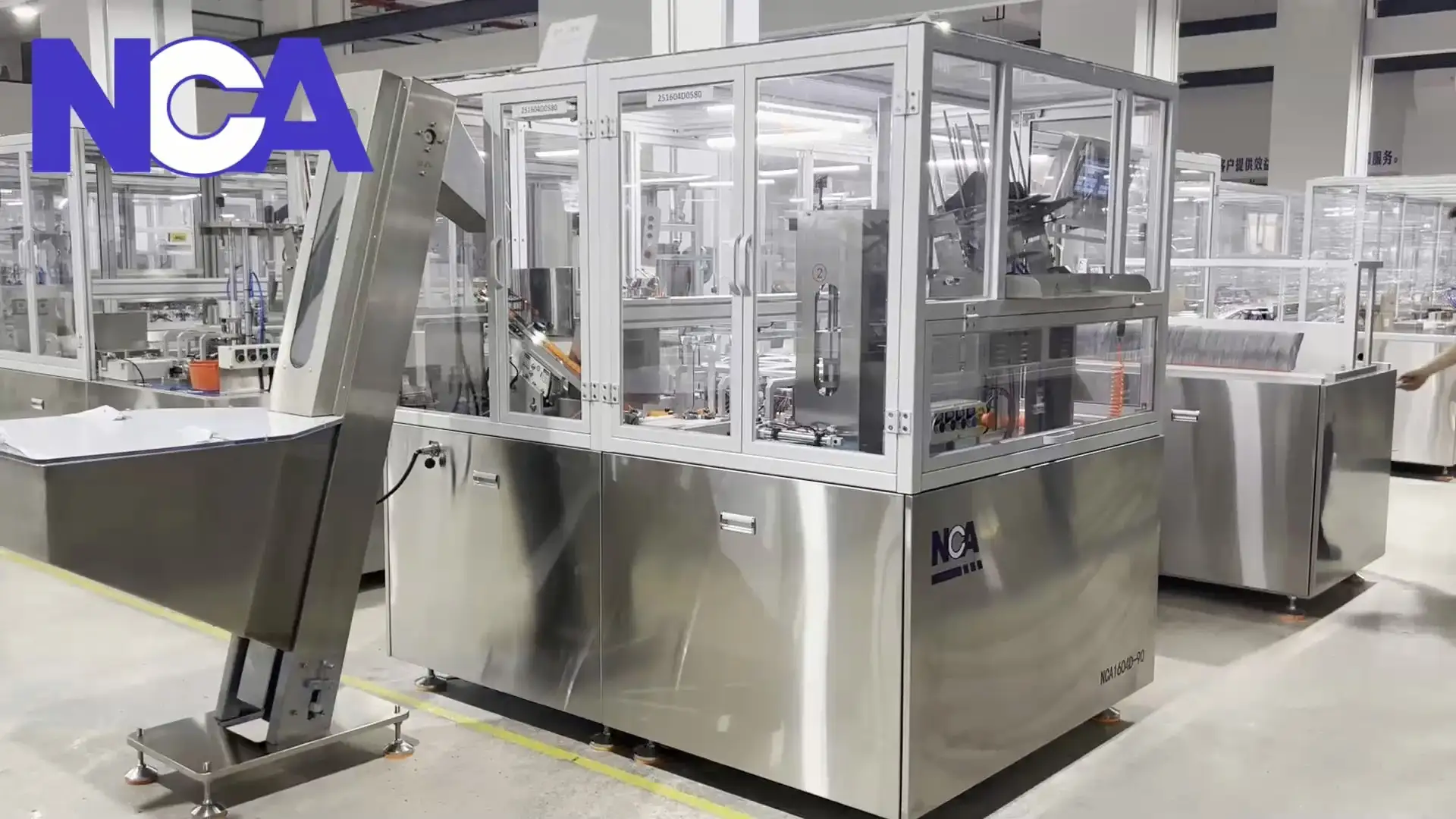

Flexible Pouch and Spout Automatic Sealing Machine NCA1604D-90
1.The machine is used to weld a plastic spout to a flexible pouch.
2.It is suitable for packaging drinks, jelly, soy sauce, flavorings and cosmetics (milk, face mask) etc..
Advantage
Main Technical Specification
|
Pouch size (L×W) |
Center spout pouch (100-190)× (70-120)mm (Different pouch size needs to adjust or change the pouch tank adjusting board.) |
|
|
Corner spout pouch (100-160)×(70-110)mm (Different pouch size needs to change the pouch tank, accompanying frame etc.) |
||
|
|
Max angle 45 degree Size A≦ 70mm Note: the machine is with corner spout function, if need to do corner spout bag, only add the pouch tank and accompanying frame extra. |
|
|
Spout type |
Long or short spout with the bayonet, supplied by the customer. |
|
|
Production efficiency |
Center spout pouch: 85-90pcs/min Corner spout pouch: 80-85pcs/min Note: The production efficiency varies because of the material and the difference of the pouch size. |
|
|
Power |
AC380V，50HZ，9.5KW，3P |
|
|
Compressed air |
0.6-0.8Mpa, 360NL/min |
|
|
Dimension (L×W×H) |
4250×1900×1730mm |
|
|
Cooling water |
6L/min |
|
|
Weight |
2600Kg |
|
