NCA - Established in 1999, we are a professional supplier of automatic flexible bag production machines and nozzle sealing machines.

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 1

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 2

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 3

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 4

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 5

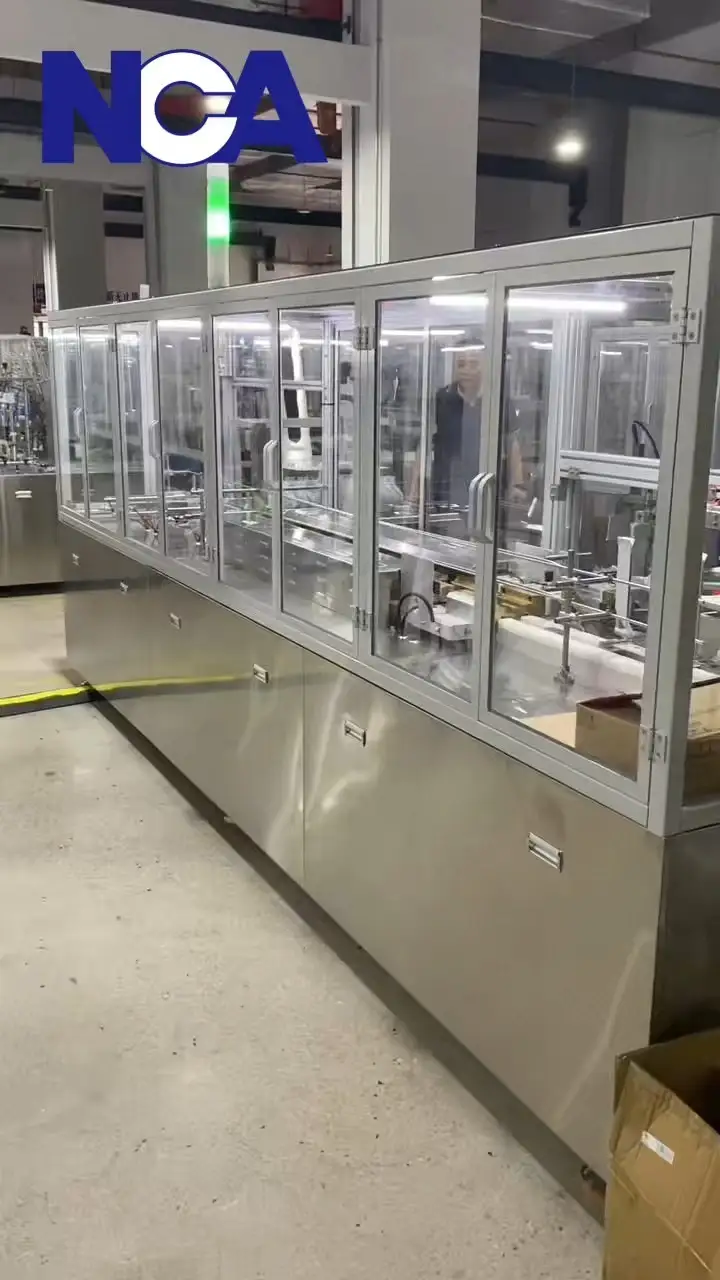

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C

Name: Flexible Pouch and Spout Automatic Sealing Machine NCA1604C
Uploaded: 2025-11-14T10:18:58+08:00
Description: The machine is used to weld a plastic spout to a flexible pouch.

Usage
l. The machine is used to weld a plastic spout to a flexible pouch.
2. It is suitable for a slightly larger packaging drinks, jelly, soy sauce, flavorings and cosmetics (milk, face mask) etc..

Inquiry

Write a Review

Advantage

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 6 Mechanical sealing (3 servo); Small noise; Low gas consumption

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 7 Various function: center/corner spout pouch; speed 60-70 pcs/min

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 8 Pouch size: Center spout pouch: 230*180mm;

Corner spout pouch: 230*150mm.

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 9 Upgraded safety protective cover

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 10 Pouch holder design positional precisely

Flexible Pouch and Spout Automatic Sealing Machine NCA1604C 11 New pouch put way,easier to adjust more stable

Main Technical Specification

Pouch size (L×W)	Center spout pouch (100-230)× (70-180)mm (Different pouch size needs to adjust or change the pouch tank adjusting board.)
	Corner spout pouch （100-230）×（70-150）mm (Different pouch size needs to change the pouch tank, accompanying frame etc.)
		Max angle 45 degree Size A≦ 70mm Note: the machine is with corner spout function, if need to do corner spout bag, only add the pouch tank and accompanying frame extra.
Spout type	Long or short spout with the bayonet, supplied by the customer.
Production efficiency	Center spout pouch: 60-70pcs/min Corner spout pouch: 60pcs/min Note: The production efficiency varies because of the material and the difference of the pouch size.
Power	AC380V，50HZ，9.5KW，3P
Compressed air	0.6-0.8Mpa, 360NL/min
Dimension (L×W×H)	5430×2400×1960mm
Cooling water	6L/min
Weight	2600Kg
