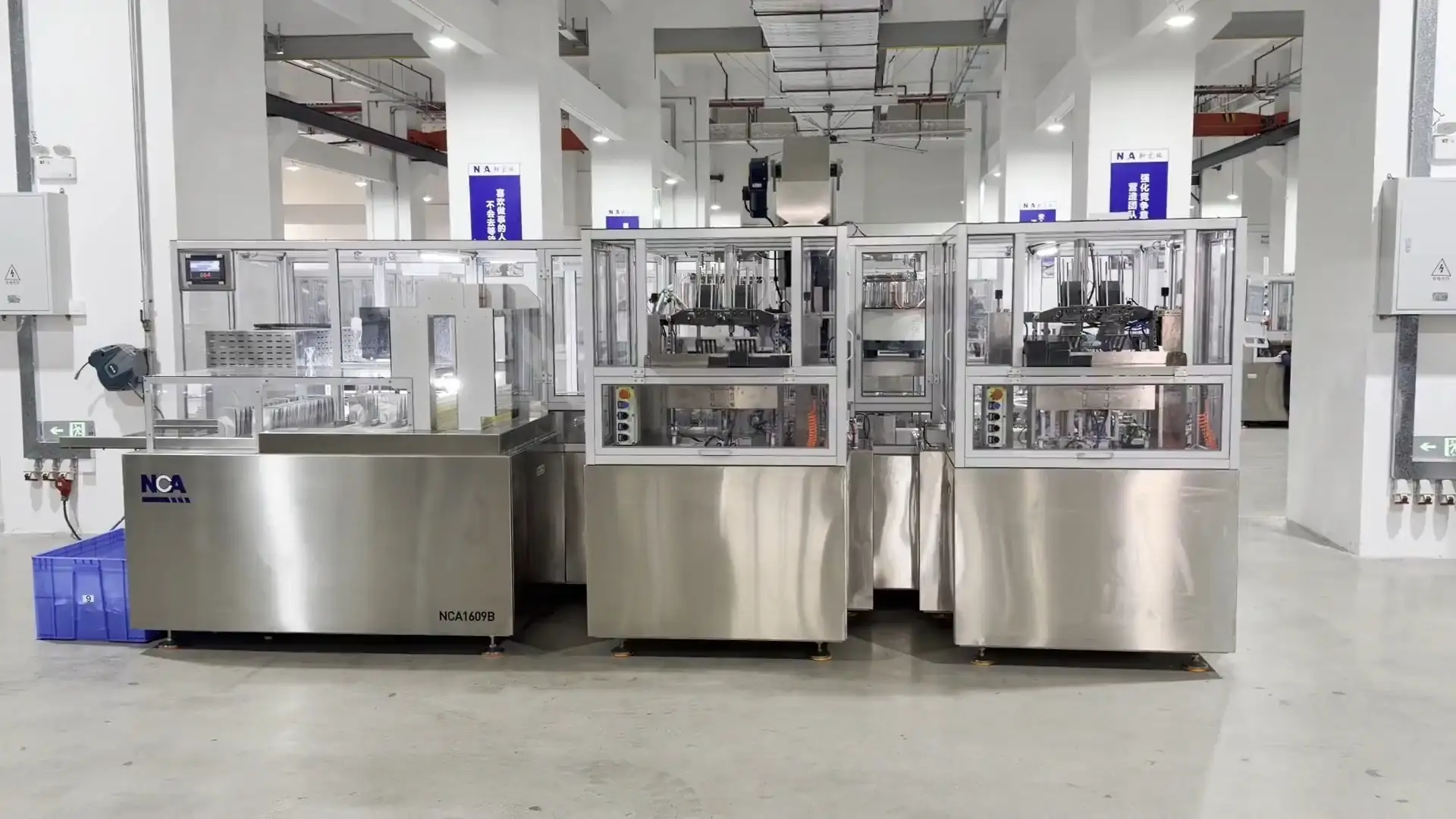

Flexible Pouch And Spout Automatic Sealing Machine NCA1609B
1.The machine is used to weld a plastic spout to a flexible pouch.
2.It is suitable for packaging drinks, jelly, soy sauce, flavorings and cosmetics (milk, face mask) etc..
Advantage
③Saving compression air; ④Extend using lifetime
Working process
Spout lining up → spout feeding → pouch putting over → first hot sealing→pushing into main machine→ hot sealing 1→ hot sealing 2 → hot sealing 3 → cold sealing and shaping →branch hot sealing to strengthen → finished product putting into plastic grooves → wasted products removing.
Main Technical Specification
|
Pouch size (L×W) |
Center spout pouch (100-190)× (70-120)mm (Different pouch size needs to adjust or change the pouch tank adjusting board.) |
|
|
Corner spout pouch （100-160）×（70-110）mm (Different pouch size needs to change the pouch tank, accompanying frame etc.) |
||
|
|
Max angle 45 degree Size A≦ 70mm Note: the machine is with corner spout function, if need to do corner spout bag, only add the pouch tank and accompanying frame extra. |
|
|
Spout type |
Long or short spout with the bayonet, supplied by the customer. |
|
|
Production efficiency |
120-140pcs/min Note: The production efficiency varies because of the material and the difference of the pouch size. |
|
|
Power |
AC380V, 50HZ, 18KW, 3P |
|
|
Compressed air |
0.5-0.7Mpa, 450NL/min |
|
|
Dimension (L×W×H) |
5800×3750×2270mm （including spout lifting device） |
|
|
Cooling water |
6L/min |
|
|
Weight |
3500Kg |
|
Application scenarios
