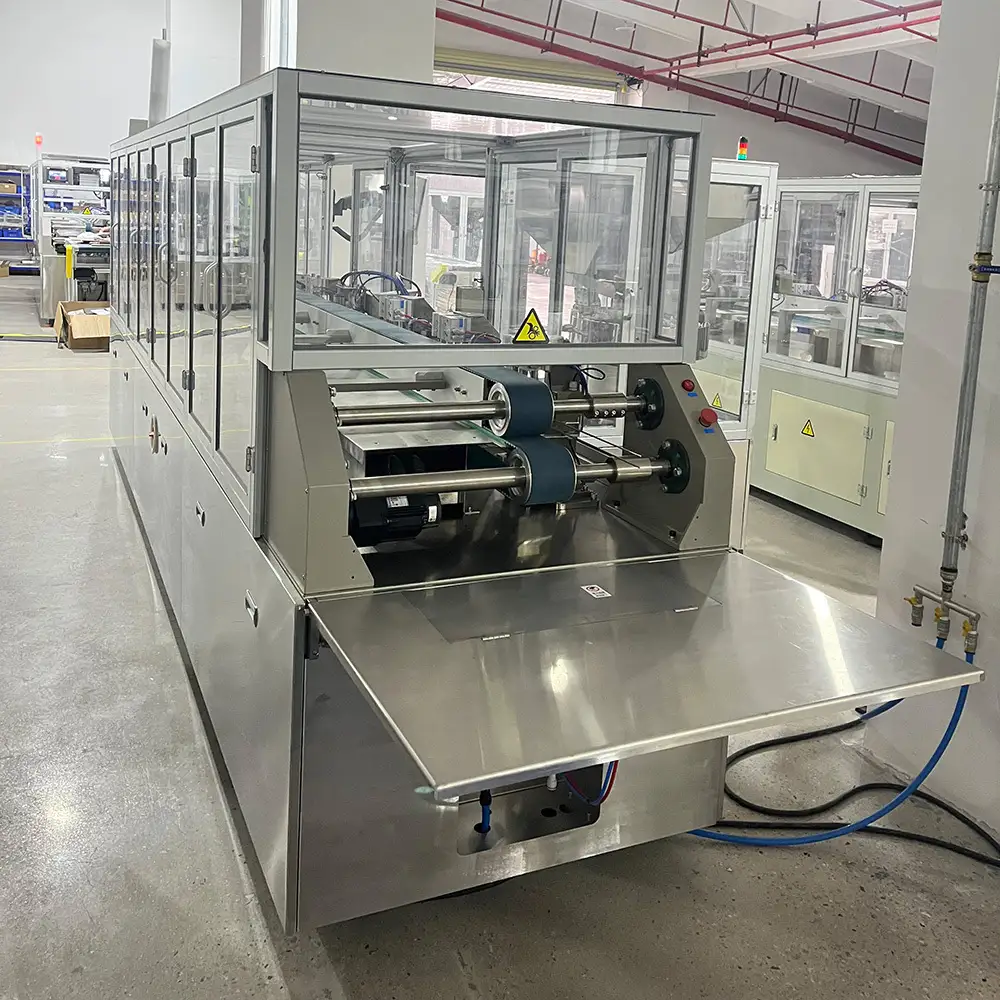

Automatic Pouch Spout Inserting Processing Machine NCA1620D 1

Automatic Pouch Spout Inserting Processing Machine NCA1620D 2

Automatic Pouch Spout Inserting Processing Machine NCA1620D 3

Automatic Pouch Spout Inserting Processing Machine NCA1620D 4

Automatic Pouch Spout Inserting Processing Machine NCA1620D 5

Automatic Pouch Spout Inserting Processing Machine NCA1620D

Name: Automatic Pouch Spout Inserting Processing Machine NCA1620D
Uploaded: 2025-11-28T11:50:51+08:00
Description: The machine is used to cut an angle and weld a plastic spout on the cut automatically.

Usage
1.The machine is used to cut an angle and weld a plastic spout on the cut automatically.
2.It is suitable for the large pouches of drinks, chrysanthemum MSG, grape sugar powder, washing liquid, hand washing liquid and cosmetics etc.

Inquiry

Write a Review

Advantage

Automatic Pouch Spout Inserting Processing Machine NCA1620D 6 Capacity: 35-40pcs/min.

Automatic Pouch Spout Inserting Processing Machine NCA1620D 7 Spout type: Short spout, supplied by the customer.(φ5mm-φ25mm).

Automatic Pouch Spout Inserting Processing Machine NCA1620D 8 Mechanical sealing (4-5 servo)

Automatic Pouch Spout Inserting Processing Machine NCA1620D 9 Automatic Angle cutting function, for both center spout pouch & corner spout pouch.

Main Technical Specification

Pouch size (L×W)	Corner spout: （120-320）×（100-250）mm MAX: 300×250mm 320×200mm 260×260mm
Cutting angle	17º---45º±2º
Spout type	Short spout, supplied by the customer.（φ5mm-φ25mm）
Production efficiency	35-40 pieces/min（the smaller size pouch） 30-35 pieces/min（the bigger size pouch） Note: The production efficiency varies because of the material and the difference of the pouch size.
Power	AC380V，50HZ，5.5KW，3P
Compressed air	0.7Mpa, 250NL/min
Dimension (L×W×H)	4210×1900×1910mm
Cooling water	6L/min
Weight	1800Kg
